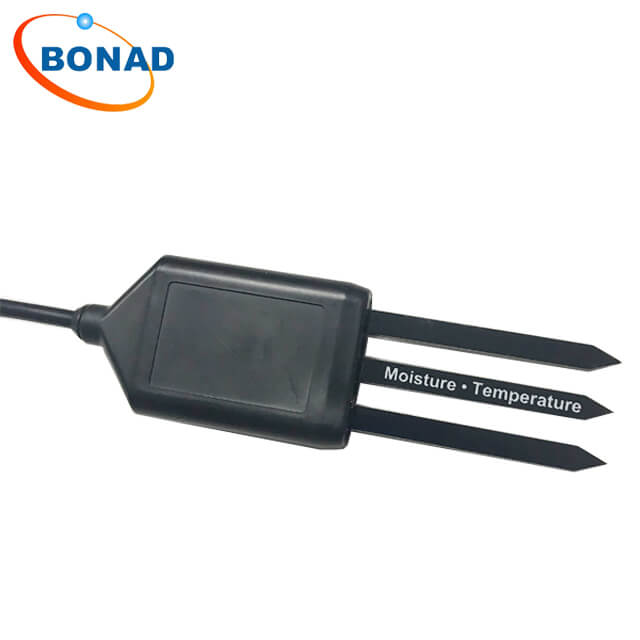

            MT10 SDI-12 Output Soil Temperature And Moisture Sensor


             We designed the MT-10 to measure the water content, electrical conductivity, and temperature of soil. The MT-10 uses an oscillator running at 70 MHz to measure the dielectric permittivity of soil to determine the water content. A thermistor in thermal contact with the sensor prongs provides the soil temperature. The Polyurethane coating on the MT-10 circuit board protects the components from water damage and gives the sensor a longer life span.










            Description



            Product Description：
            Name：MT10 SDI-12 Output Soil Temperature And Moisture Sensor
            Type：BND-MT10
            We designed the MT-10 to measure the water content, electrical conductivity,
and temperature of soil. The MT-10 uses an oscillator running at 70 MHz to
measure the dielectric permittivity of soil to determine the water content. A
thermistor in thermal contact with the sensor prongs provides the soil
temperature. The Polyurethane coating on the MT-10 circuit board protects the
components from water damage and gives the sensor a longer life span.

            Specifications
            Volumetric Water Content
            Range: 0 (air) to 100 (water)

            Temperature
            Range: -40 to 80 ℃
            Resolution: 0.01 ℃
            Accuracy:±0.5 ℃

            General
            Dimensions: 10 cm (1) x 3.2 cm (w) x 0.7 cm (d)
            Prong Length: 5.2 cm
            Dielectric Measurement Frequency: 70 MHz
            Measurement Time: 150 ms (milliseconds)
            Power requirements: 3.6 to 30 VDC, 0.3mA quiescent, 10mA during 150 ms
measurement

            Output: SDI-12 / RS485 MODBUS RTU
            Operating Temperature: -40 to 80 ℃
            Connector Types: 3.5 mm (stereo) plug or stripped & tinned lead wires
(Pigtail)
            Cable Length: 5 m standard; Maximum 75 m. Please contact if you need longer
cable lengths.

            PHYSICAL CHARACTERISTICS
            SENSOR NAME
            MT10
            DIMENSIONS
            10 cm X 3.2 cm
            CABLE LENGTH
            5 meters
            * Custom cable lengths are available for an additional cost.

            Type Selections
            Code number
            Code
            Code info.
            Code1：model
            MT10

            Code2：Measurement parameters
            A
            B
            Soil moisture, Soil temperature（SDI-12）
            Soil moisture, Soil temperature, soil electrical conductivity (EC). Three parameter measurement（RS485 ONLY）
            Code3：
            Soil moisture range
            A
            0-100%
            Code4：
            Electrical conductivity range（RS485 ONLY）
            A
            B
            C
            D
            0-5000us/cm （RS485 ONLY）
            0-10000us/cm（RS485 ONLY）
            0-20000us/cm（RS485 ONLY）
            NONE
            Code5：
            CONNECTION TYPES
            A
            B
            PIGTAIL CABLE
            STEREO CABLE （SDI-12 ONLY）
            Code6：Output
            A
            B
            SDI-12
            RS485 MODBUS RTU
            Code 7：cable lengths
            005
            XXX
            5 meters
            Custom, XXX is an arbitrary length (unit: m)
            Model example：
            MT10 Sensor, Soil moisture, Soil temperature, soil moisture range is 0-100%, interface SDI-12, connection type is STEREO CABLE, 5 meters cable length.
            Type selection code：MT10 - A A D B A 005
