            80 kW High Laser Power Sensor BND-80K-D86V


             Product Description：Name：80 kW High Laser Power SensorType：BND-80K-D86VPower sensor Features:1. Continuously laser power measurement,up to 80 kW;2. Patented two-dimensional beam expansion design,significantly reduces the power density;3. Reflective cone-free design reduces the risk of laser damage and improves total reliability and stability;4. High linearity,sectional calibration is not required;5. The cavity absorption is as high as 99.86% (Backscattered Power rate is only 0.14%);6. 86 mm aperture.










            Description



            Product Description：
            Name：80 kW High Laser Power Sensor
            Type：BND-80K-D86V

            Power sensor Features:
            1. Continuously laser power measurement,up to 80 kW;
            2. Patented two-dimensional beam expansion design,significantly reduces the
power density;
            3. Reflective cone-free design reduces the risk of laser damage and improves
total reliability and stability;
            4. High linearity,sectional calibration is not required;
            5. The cavity absorption is as high as 99.86% (Backscattered Power rate is
only 0.14%);
            6. 86 mm aperture.

            Specification:
            Model
            BND-80K-D86V
            Absorption
            99.84%
            Wavelength Range
            0.19 nm-25 μm
            Power Range
            1kW-80kW
            Scale
            Auto
            Aperture
            86 mm
            Power Resolution
            0.1 W
            Response Time(0-95%)a
            40-60s
            Calibration Uncertainty
            <4%
            Non-linearity
            <±1%
            Accuracy
            ±5%
            Backscattered Power
            0.14%
            Damage Threshold(b
            20 kW/cm2
            Cooling
            Water

            Recommended Water Flow
            @Full power e
            10L/min@1-10kW
            20L/min@10-30kW
            30L/min@30-50kW
            40L/min@50-80kW
            Dimension
            380×280×191mm
            Cable Length
            5m
            Connector Type
            USB

            Notes:
            (a).Time from zero to 95% of stable value is 40-60s;
            (b).Recommended laser diameter>50mm@80kW;
            (c).Recommended Water temperature range:18-30°C;Water temperature change
rate:<1℃/min.

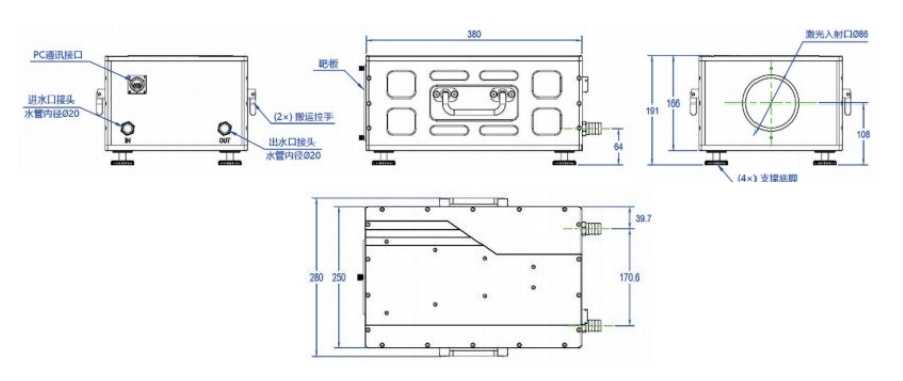

            Laser power sensor Dimensions:

            80kW-High-Power-Sensor (1).jpg
