            30 kW Laser Beam Dump BND-X30K-D80-BD


             Product Description：Name：30 kW Laser Beam DumpType：BND-X30K-D80-BDThe BND-X30K-D80-BD is a water cooled beam dump for up to 30 kW with a 80 mm aperture. It has a deflecting cone and annular absorber that withstands high power densities to 10 kW/cm². It can be used over the spectral range from 0.19 to 25 µm.










            Description



            Product Description：
            Name：30 kW Laser Beam Dump
            Type：BND-X30K-D80-BD
            The BND-X30K-D80-BD is a water cooled beam dump for up to 30 kW with a 80 mm
aperture. It has a deflecting cone and annular absorber that withstands high
power densities to 10 kW/cm². It can be used over the spectral range from 0.19
to 25 µm.

            Features of laser power sensor:
            Beam dump for up to 30 kW
            Water cooled
            80 mm diameter aperture

            Specification of 30 kW power sensor:

            Model
            BND-5000W-D50-BD
            BND-15K-D48CP-BD
            BND-X30K-D80-BD
            Absorption
            90%
            90%
            90%
            Wavelength Range
            0.19-25um
            0.19-25um
            0.19-25um
            Power Range
            0-5kW
            0-16kW
            0-33kW
            Aperture
            48mm
            48mm
            80mm
            Damage Threshold(a)
            1kW/cm2@5kW
            10kW/cm2
            10kW/cm2
            Cooling
            Water
            Water
            Water
            Recommended Water Flow @Full power(b）

            8L/min

            14L/min

            28L/min
            Dimension
            Φ143×55mm
            Φ138×85mm
            Φ228×115mm

            Notes:
            (a).Recommended laser diameter:>25mm@5kW,>25mm@15kW,>40mm@30kW;
            (b).Recommended Water temperature range:18-30°℃.

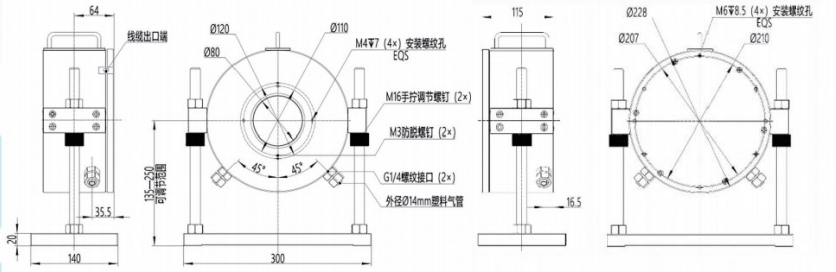

            Water-Cooled Beam Dump Dimension:
            BND-X30K-D80-BD(30kW)
