            2000W Water-Cooled Laser Power Measurement Sensors


             Product Description：Name：BONAD 2000 W Water-Cooled Laser Power Measurement SensorsType：BND-2000W-D50The BND-2000W-D50 thermopile sensor is a water cooled laser power and energy thermal sensor with a 36 mm aperture. It can measure optical power from 10 to 2000 W . It has the spectrally flat broadband BB coating and covers the spectral range from 266 nm-10.6 um.










            Description



            Product Description：
            Name：BONAD 2000 W Water-Cooled Laser Power Measurement Sensors
            Type：BND-2000W-D50
            The BND-2000W-D50 thermopile sensor is a water cooled laser power and energy
thermal sensor with a 36 mm aperture. It can measure optical power from 10 to
2000 W . It has the spectrally flat broadband BB coating and covers the spectral
range from 266 nm-10.6 um.

            Features:
            1.Measures laser power continuously, up to 2000W.
            2.Highly linear, does not require sectional calibration.
            3.Excellent absorption capability.
            4.Available with 50mm apertures.
            5.Water cooling feature.
            6.Broadband 266 nm-10.6 umabsorber
            7.Water-cooled for 10 to 2000 W average power measurement

            Product Specifications:
            Model
            BND-2000W-D50
            Absorption
            90%
            Wavelength Range
            266nm-10.6um
            Power Range
            10W-2000W
            Scale
            Auto
            Aperture
            50mm
            Power Resolution
            0.1W
            Response Time(0-95%)(a)
            <5s
            Calibration Uncertainty
            <3.5%
            Non-linearity
            <±1%
            Accuracy
            ±4%
            Damage Threshold (b)
            1kW/cm2 @2kW
            Cooling
            Water
            Recommended Water Flow Rate
            @Full power (c)
            5L/min
            Dimensions
            Ø 131×39.3mm
            Cable Length
            5m
            Connector Type
            DB15

            Notes:
            (a).Time from zero to 95% of stable value;
            (b).Recommended laser diameter:>25mm@1.5kW;>20mm@2kW;
            (c).Recommended water temperature range:18-30°C; Water temperature change
rate:<1℃ /min.

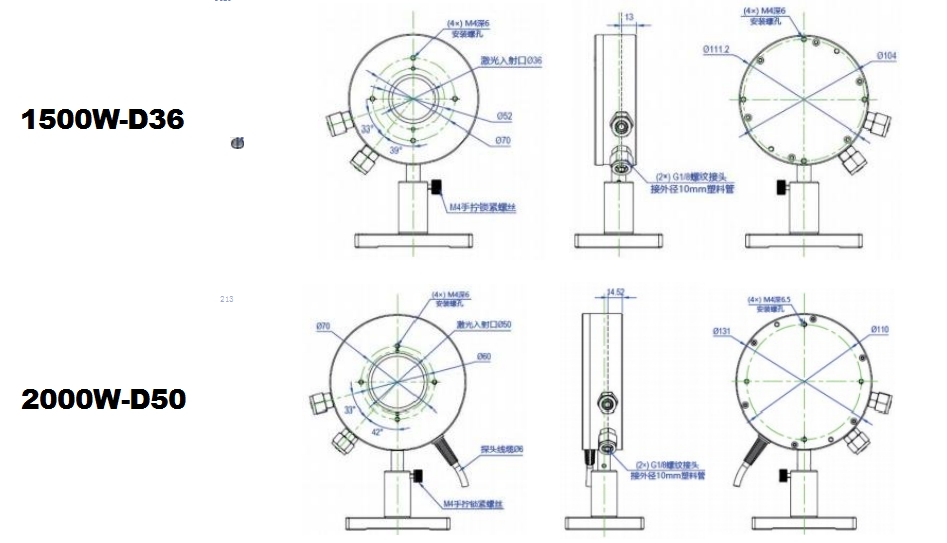

            Dimensions of laser power sensor:
